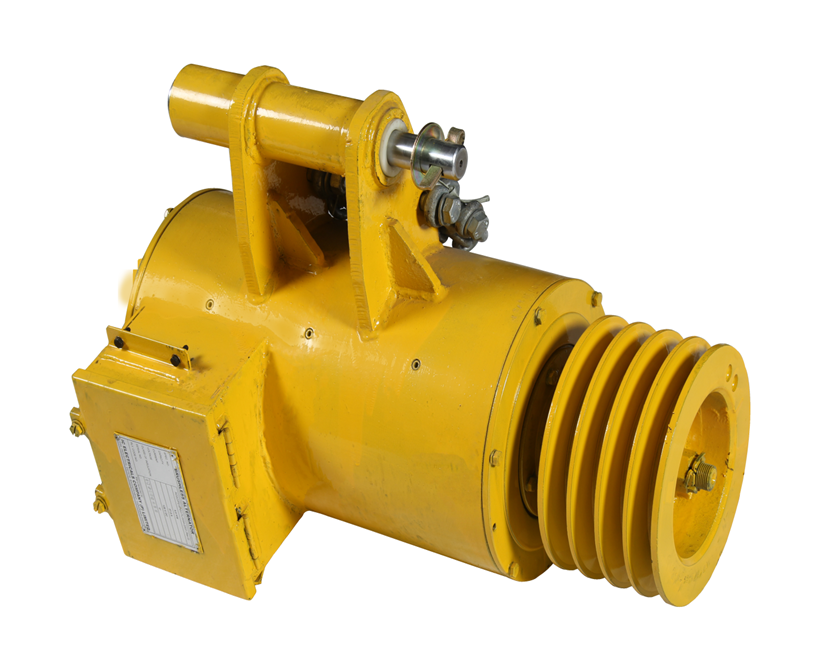

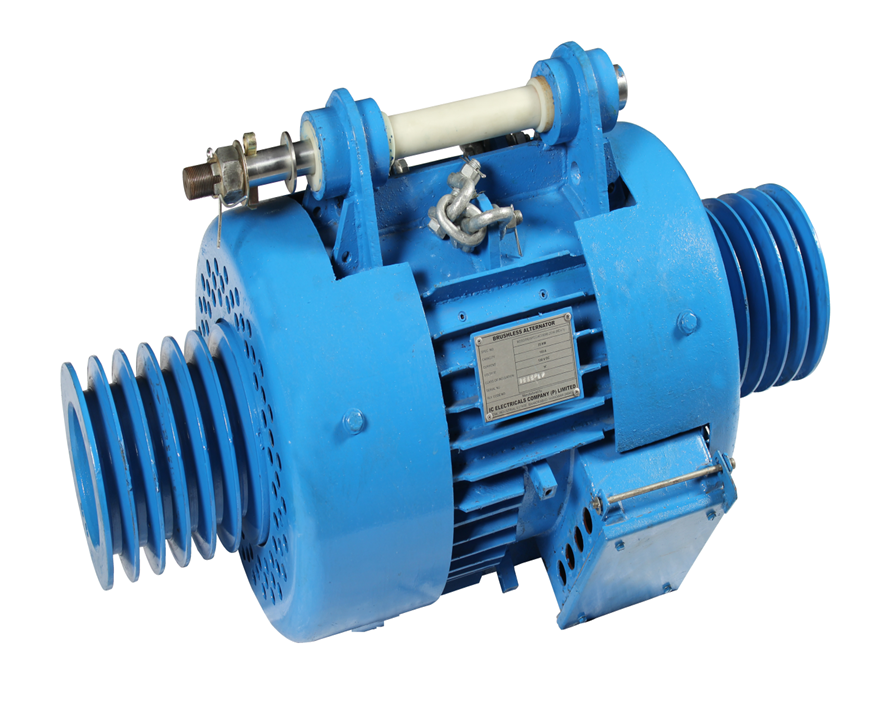

4.5 KW Brushless Alternator
- Type: 3-Phase Separately Excited Brushless Alternator
- Rated Capacity: 4.5 KW
- Full Load Voltage: 100V, 3-Ph (Variable Frequency, 0-400Hz)
- Full Load Current: 35 Amps/Phase
- Cut In Speed: 350 Rpm
- Minimum Speed for Full Load Output: 550-600 Rpm
- Maximum Permissible Speed: 2500 rpm
- Class of insulation: Class F
- Type of Mounting: Under slung
- Field of Application: Indian Railways Non-AC Passenger Coaches and Chair Cars
25 KW Brushless Alternator
- Type: 3-Phase Separately Excited Brushless Alternator
- Rated Capacity: 25 KW
- Full Load Voltage: 100V, 3-Ph (Variable Frequency, 0-400Hz)
- Full Load Current: 145 Amps/Phase
- Cut In Speed: 450 Rpm
- Minimum Speed for Full Load Output: 750-800 Rpm
- Wt. of Alternator:390.00 kg
- Maximum Permissible Speed: 2500 rpm
- Class of insulation: Class F
- Type of Mounting: Under slung
- Field of Application: Indian Railways AC Passenger Coaches

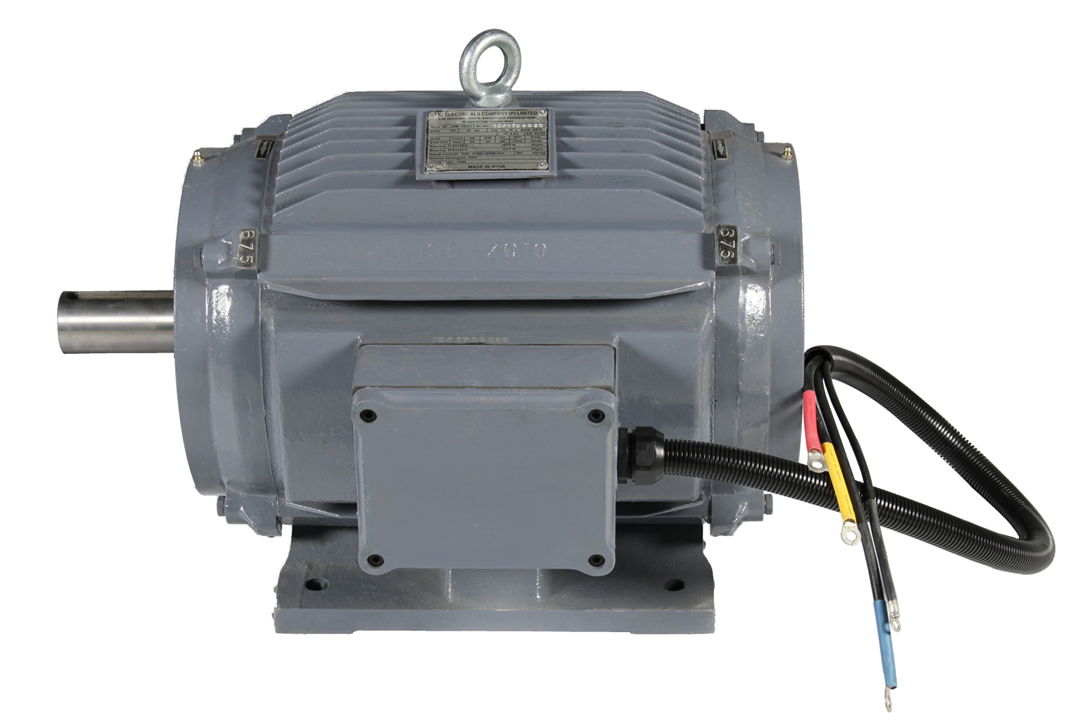

Auxiliary AC Motors for Locomotives
- Auxiliary AC Motors for Locomotives
Traction Motor Division
- We manufacture different types of DC Traction motors like

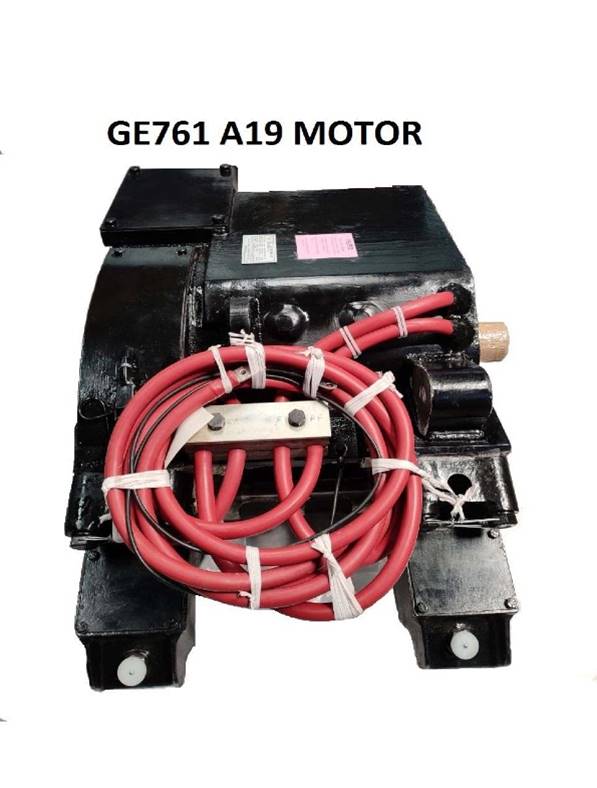

- GE 761, GE752
- GM D29, D31, D43, D78, D78
- Other types such as 1259, 1264

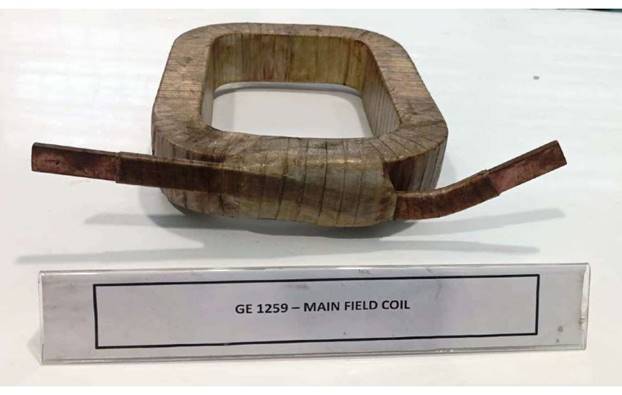

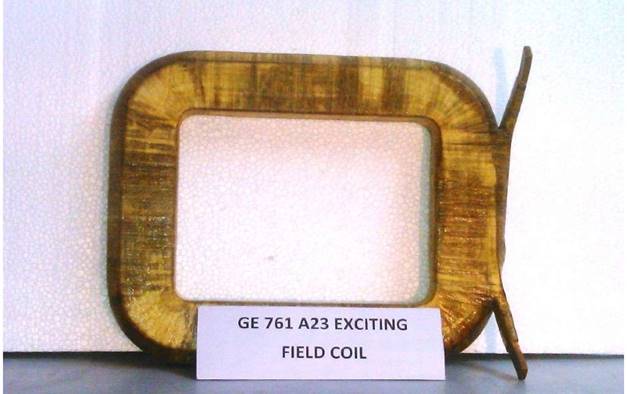

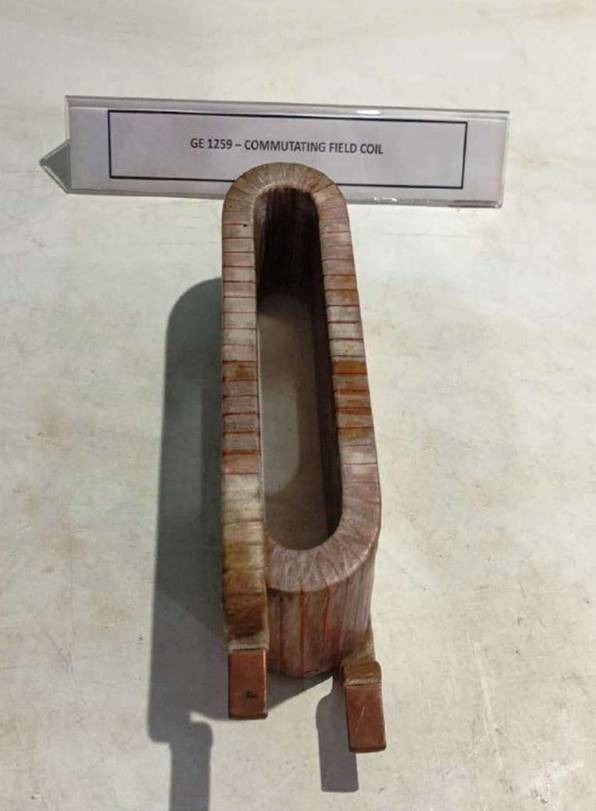

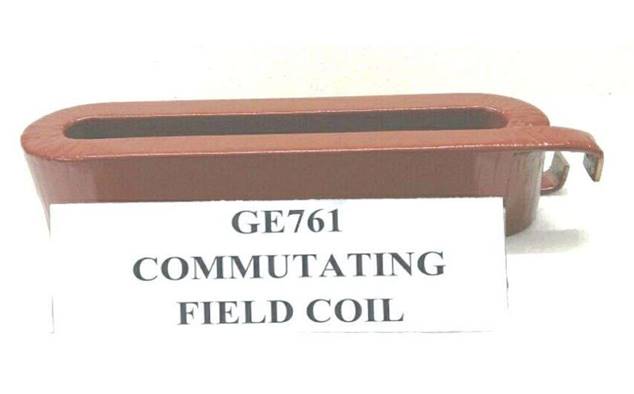

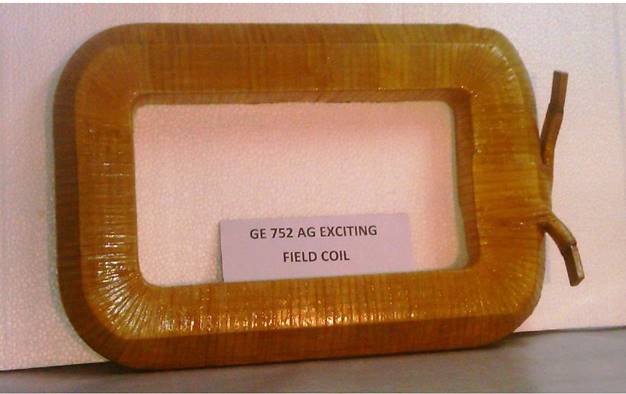

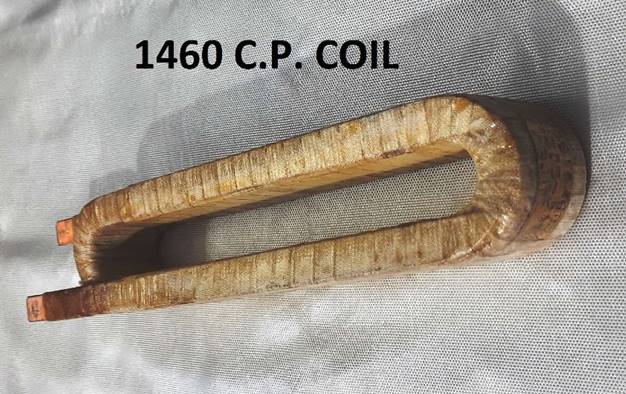

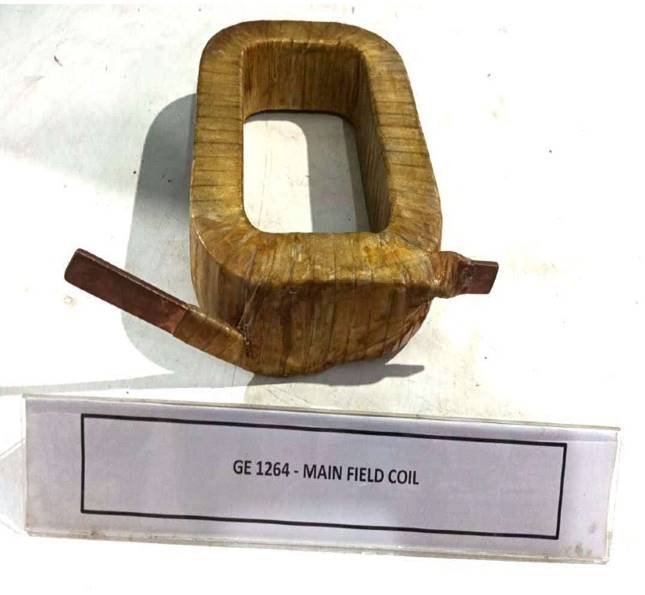

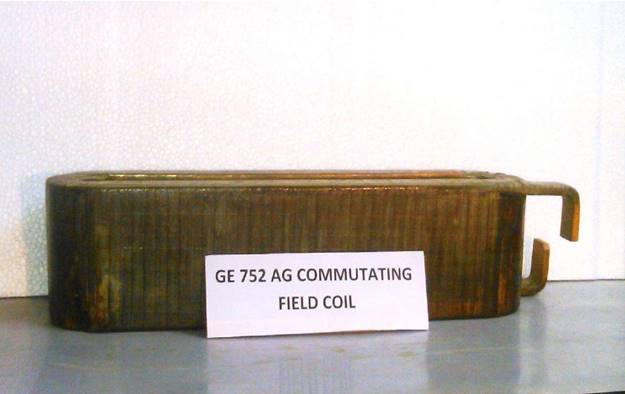

- We manufacture main field and commutating field coils with pole shoe

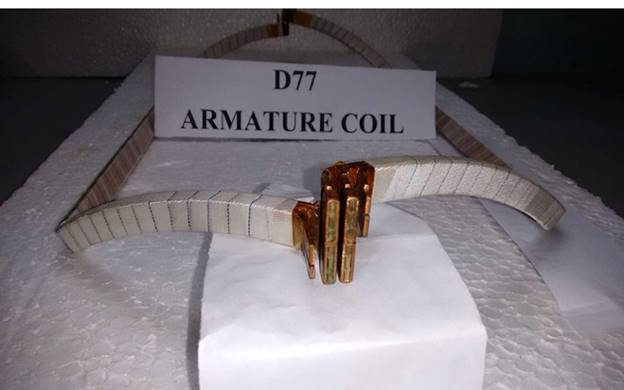

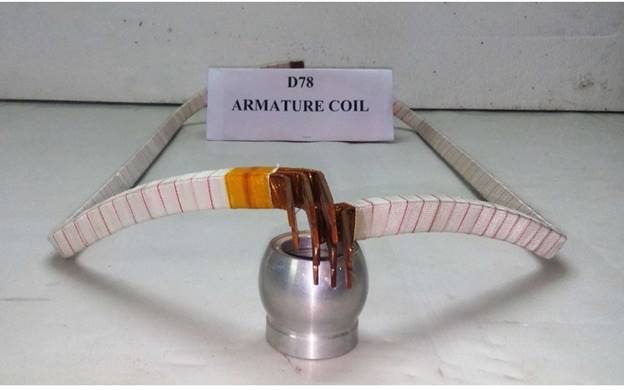

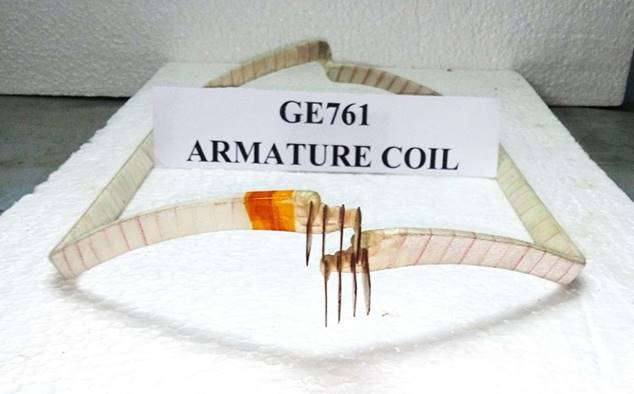

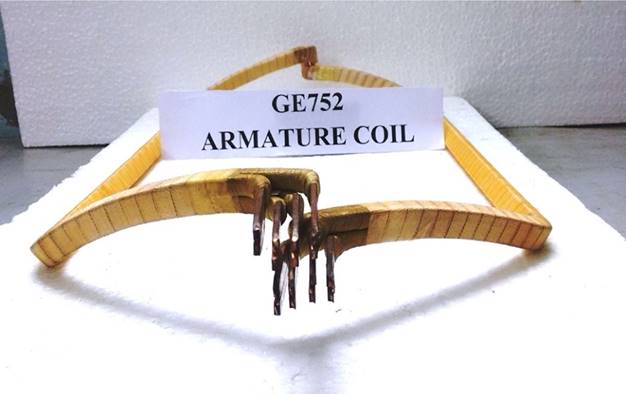

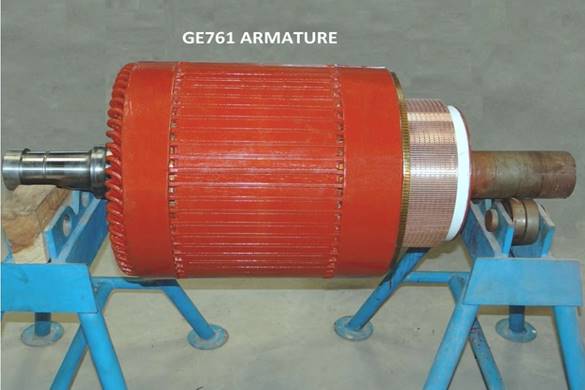

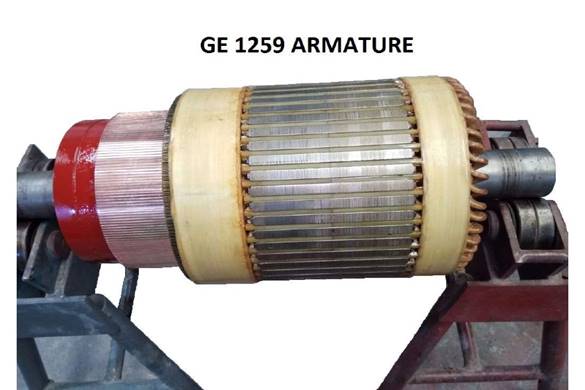

- Different types of Armatures
- Traction motors for Electric and Diesel Electric Locomotives

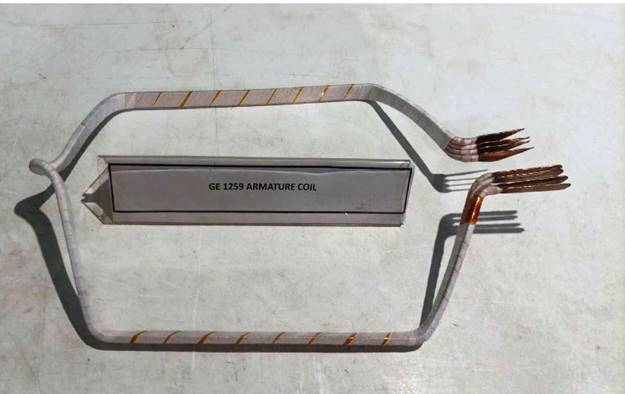

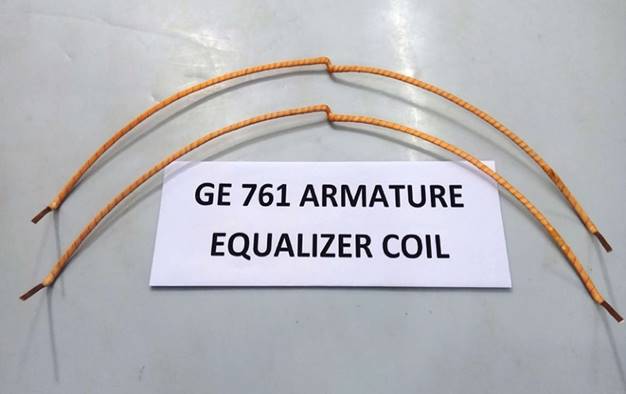

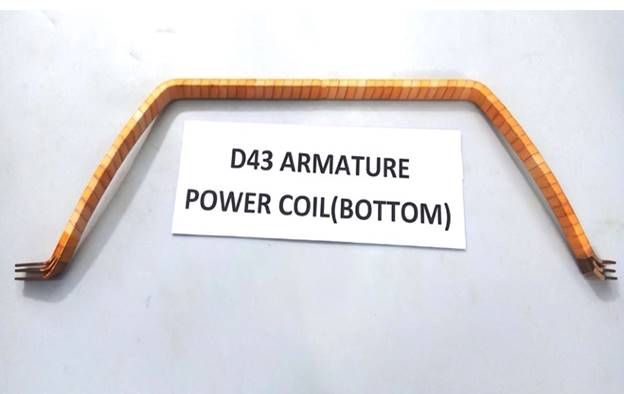

- Armature Power and Equalizer Coils for DC Motors
